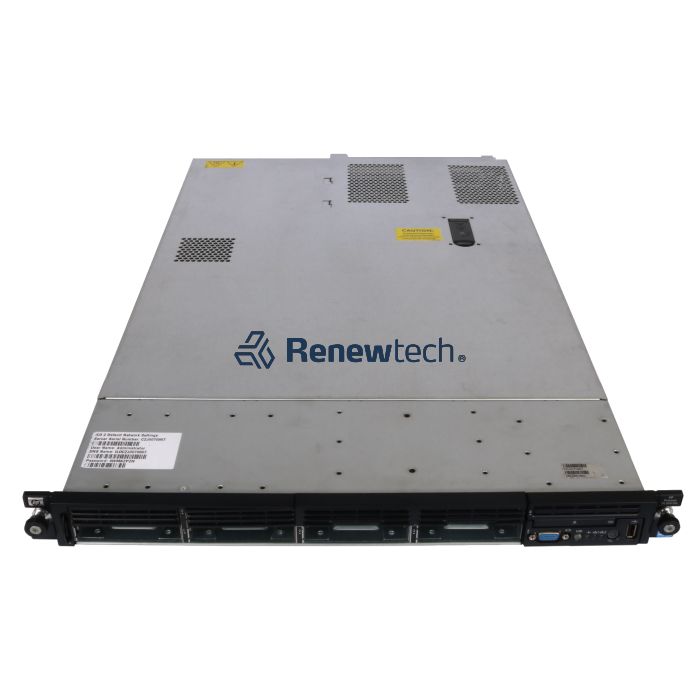

HP 484184-B21 - HP DL360 G6 4SFF CTO Server

HPE ProLiant DL360 G6 CTO. Motherboard chipset: Intel® 5520, Processor family: Intel, Compatible processor series: Intel® Xeon®. Supported memory types: DDR3-SDRAM, Supported RDIMM clock speeds: 800,1066,1333 MHz, Supported UDIMM clock speeds: 800,1066,1333 MHz. Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA, Storage controller: HP Smart Array P410i. Maximum graphics card memory: 32 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: HP NC382i

Combining concentrated 1U compute power, HP Insight Control, and essential fault tolerance, the HP ProLiant DL360 G6 is optimized for space constrained installations. Intel® Xeon® 5600/5500 Series Processors (6, 4 and 2 core), with choice of DDR3 Registered or Unbuffered DIMMs, Serial Attached SCSI (SAS) and PCI Express Gen2 technology provide a high performance system, ideal for the full range of scale out applications. What's more, the DL360 G6 steps up the fault tolerant in an ultra-dense platform with redundant power, redundant fans, mirrored memory, embedded RAID capability, HP Insight Control for essential server management.

Features

More Performance, Capacity and Efficiency in Less Space.

Intel® Technology
- New performance with Intel® Xeon® Processors 5600/5500 series offers higher performance, better power efficiency, and more adaptability with: Intel QuickPath, Integrated Memory Controller, Turbo Boost, Intelligent Power Technologies, Trusted Execution Technology

Improved Capacity
- Up to 192GB Registered Memory DIMMS (up to 48GB Unbuffered): Memory intensive applications benefit from memory buffers, faster memory speeds, 4:1 memory interleaving, online spares and larger memory capacity.

PCI-Express Gen 2 Technology
- Serial PCI-Express technology greatly improves I/O bandwidth and data throughput.

Communications and Remote Management Ports
- Two 1Gb NIC ports plus TCP/IP offload engine reduces network latency but offloading the CPU from processing network traffic.

Serial Attached SCSI (SAS)
- With up to eight (8) SAS drives and new Smart Array RAID controllers, you get quicker access to data and increase storage bandwidth for cutting edge storage performance.

Optimum fault tolerance

Fan redundancy, standard
- Allows for continued operation until maintenance can be scheduled to replace a failed fan assembly.

Hot plug power supply with optional redundancy
- Hot plug redundancy means no down time to repair failure. Each power supply has its own power cord so redundant power to the rack can be supported.

Integrated Storage Array
- Integrated RAID controller, transportable battery-backed write cache improves disk performance. Transportable battery-backup means cache can be moved to another server.

Dual-Port Multifunction Gigabit Network Adapter
- Integrated NICs support TCP/IP, iSCSI, Wake On LAN (WOL) and PXE for additional management functionality. High speed LAN capability without having to use a slot. NICs can be teamed or configured for redundancy. Along with remote management NIC port with TOE.

Advanced ECC memory
- Corrects 4bit memory errors that occur within a single DRAM chip on the DIMM.

Deployment versatility in a 1U form factor

2 PCI-Express expansion slots
- 2 slots (1 full length/height, 1 low profile) allows for configuration options, such as redundant Host Bus Adapters (HBA) or NICs, for additional levels of uptime.

Smart Array P410i controller comes standard
- The Performance models have additional 512MB Memory and BBWC, Base models have additional 256MB Memory.

SAS/SATA or SSD drive support
- Multiple drive technologies provide unique price/performance configuration options.

Integrated Lights Out management
- Remote management eliminates the need to be physically present to address unexpected server issues.

Instant Health indicators
- System Insight Display: A rugged slide-out system diagnostics display saves administrators time with easy to find trouble shooting information at the front of the server.

Delivering best-run server infrastructure

Total Control
- Take complete control of your server infrastructure from anywhere.

Maximum Flexibility
- Be responsive to the needs of your organization, efficiently and precisely.

Tangible Savings
- Make the most of every dollar you invest in server assets, IT staff and facilities.

Industry Leading Efficiency
- Delivering more power for your needs with the highest efficiency in the industry, as seen by meeting Climate Savers Computing Gold, 80PLUS Gold, and setting the standards for Energy Star for Servers compliance.

Intelligent Power Management
- Unique HP Thermal Logic Technologies: “Intelligent Power & Cooling Savers” Smart power stops power delivery when components are not in use, adjusting fan control for efficient cooling. Smart Sensors allow intelligent actions to preserve, protect and enhance performance and power savings
